Get the free ups installation checklist

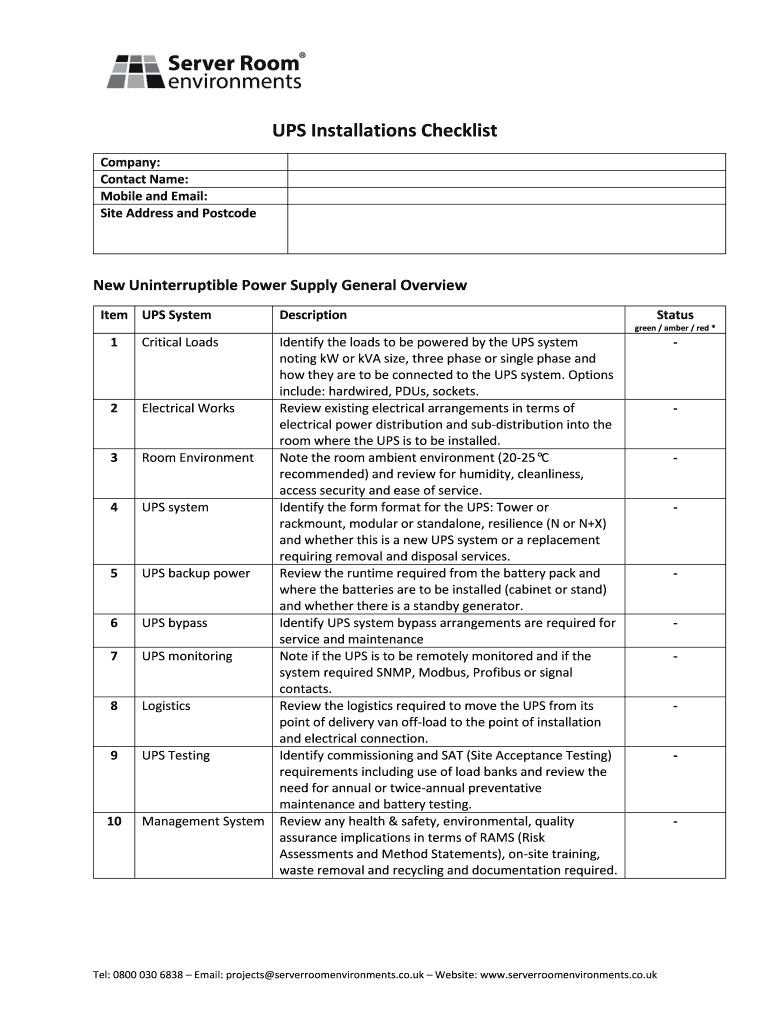

UPS Installations Checklist Company: Contact Name: Mobile and Email: Site Address and Postcode Uninterruptible Power Supply General Overview Item UPS SystemDescriptionStatus green / amber / red *1Critical

How to fill out ups installation checklist

1. To fill out the UPS installation checklist, start by carefully reviewing the provided form and instructions.
2. Begin by entering the necessary information in the designated fields, such as the date, location, and relevant contact details.
3. Proceed to the checklist section and carefully follow each item listed. Mark each item as complete if it meets the required criteria or leave it unchecked if it does not.
4. Ensure that each task is thoroughly inspected and tested as per the checklist. This may include verifying electrical connections, testing battery backup, and conducting load tests.
5. Take note of any issues or discrepancies encountered during the installation process and document them appropriately on the checklist.
6. Finally, review the completed checklist to ensure all necessary information has been correctly entered and all tasks have been adequately addressed.

Who needs the UPS installation checklist?

1. Individuals or companies responsible for installing UPS systems need this checklist to ensure proper installation and adherence to guidelines.
2. Technicians or electricians involved in UPS installation require the checklist to ensure they cover all necessary tasks and abide by safety protocols.
3. Organizations or businesses that rely on uninterrupted power supply need the checklist to verify the successful installation of a UPS system and minimize potential disruptions in operations.

People Also Ask about

In which position UPS must be installed?

The UPS must be installed vertically, on a level and even surface and in an area protected from extremes of temperature, water and Do not stack units and do not place objects on top of them. The operating temperature range of the UPS is o °C to 40°C. Ideal environmental temperature range is 15 °C to 25 °C.

What are the room requirements for UPS?

Proper ventilation is crucial for any UPS room, keeping the temperature comfortable and ambient. Lead acid batteries are releasers of hydrogen, so it's recommended to equip the room with both temperature gauges and hydrogen detectors to minimise the risk of fire.

What is UPS and its diagram?

UPS stands for Uninterruptible Power Supply. An Uninterruptible Power Supply (UPS) is an electrical device used to provide emergency electrical power to different electrical loads in the case of a main power supply failure.

What is UPS block diagram?

The block diagram of a typical On-Line UPS system is shown in Figure-2. In this system, the rectifier circuit receives ac power from the supply mains and directly drives the inverter circuit. Thus, it involves two simultaneous conversion processes and is hence referred to as a Double Conversion UPS System.

Where should UPS be installed?

It is important to carefully consider the location and environment where a UPS will be installed, always avoiding potential triggers such as heat, humidity and dust. Proper air flow is essential, so it is critical to never block UPS vents.

What is UPS block?

Uninterruptible power supplies protect 24 V supply voltages from unexpected power failures. Capacitive UPS solutions from BLOCK's Power Compact series provide 24 V supply voltage up to the minute range. Featuring ultracapacitors they are designed for long lifetimes.

What are the ventilation requirements for UPS room?

In order to provide for adequate ventilation, the UPS should be installed in a room, which has at least 1000mm of clearance on the top side or the rear side of the UPS based on the ventilation type. This area of UPS should be cleared of any obstruction, which would impede air flow.

What are the room design requirements for UPS?

UPS room temperature Proper ventilation is crucial for any UPS room, keeping the temperature comfortable and ambient. Lead acid batteries are releasers of hydrogen, so it's recommended to equip the room with both temperature gauges and hydrogen detectors to minimise the risk of fire.

Do you need an electrician to a UPS?

Any hardwired UPS should be installed by a licensed electrician, preferably one who is familiar with the particular model. While smaller plug-and-play UPSs enable installation by users, in these instances it is still wise to have a second set of eyes review the work.

What is the temperature for UPS room design?

Designing adequate cooling for the UPS room will ensure the reliability of the equipment itself. While UPS equipment can tolerate relatively high temperatures for short periods of time (typically up to 104 F), most manufacturers recommend a temperature of 77 F or less for this room.

How do I know my UPS requirements?

Simply tally up the wattage of every device you plan to connect your UPS to (this is your load) and multiply that number by 1.25 to determine the UPS capacity you need. Your load should not exceed 75%-80% of your UPS system's capacity.

For pdfFiller’s FAQs

How can I send ups installation checklist to be eSigned by others?

When you're ready to share your ups installation checklist, you can send it to other people and get the eSigned document back just as quickly. Share your PDF by email, fax, text message, or USPS mail. You can also notarize your PDF on the web. You don't have to leave your account to do this.

Can I sign the ups installation checklist electronically in Chrome?

As a PDF editor and form builder, pdfFiller has a lot of features. It also has a powerful e-signature tool that you can add to your Chrome browser. With our extension, you can type, draw, or take a picture of your signature with your webcam to make your legally-binding eSignature. Choose how you want to sign your ups installation checklist and you'll be done in minutes.

Can I create an eSignature for the ups installation checklist in Gmail?

When you use pdfFiller's add-on for Gmail, you can add or type a signature. You can also draw a signature. pdfFiller lets you eSign your ups installation checklist and other documents right from your email. In order to keep signed documents and your own signatures, you need to sign up for an account.

What is ups installation checklist?

The UPS installation checklist is a document that outlines the key steps and requirements needed for the successful installation of an Uninterruptible Power Supply (UPS) system.

Who is required to file ups installation checklist?

Technicians and professionals involved in the installation process of a UPS system are typically required to complete and file the installation checklist.

How to fill out ups installation checklist?

To fill out the UPS installation checklist, review each item on the list, ensure that all requirements and steps have been met, and then provide the necessary details or confirmations in the designated fields.

What is the purpose of ups installation checklist?

The purpose of the UPS installation checklist is to ensure that all necessary steps are followed for a safe and effective installation of the UPS system, minimizing the risk of errors and ensuring optimal performance.

What information must be reported on ups installation checklist?

The UPS installation checklist must report information such as site assessment details, equipment specifications, installation procedures, safety checks, and confirmation of testing and verification processes.
