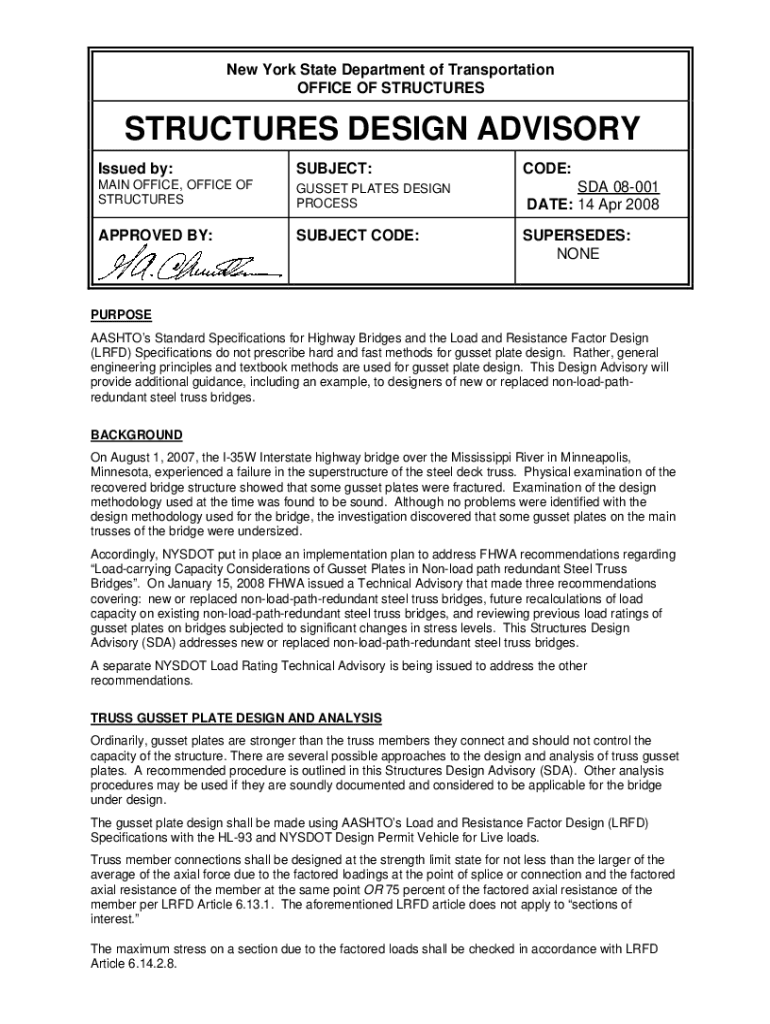

New York State Department of Transportation OFFICE OF STRUCTURESSTRUCTURES DESIGN ADVISORY Issued by:SUBJECT:MAIN OFFICE, OFFICE OF STRUCTURESGUSSET PLATES DESIGN PROCESSAPPROVED BY:SUBJECT CODE:CODE: SDA

How to fill out gusset plates design process

How to fill out gusset plates design process:

1. Start by gathering all the necessary information regarding the project. This includes the load requirements, dimensions, and specifications provided by the structural engineer or architect.
2. Identify the type of gusset plate that will be used. There are several types available, including flat plates, punched plates, and stiffened plates. Choose the most appropriate type for the specific application.
3. Determine the material for the gusset plate. Common materials include steel and aluminum. Consider factors such as strength, durability, and cost when selecting the material.
4. Consult the relevant building codes and standards to ensure compliance with the design process. This step is crucial to ensure the safety and structural integrity of the gusset plates.
5. Calculate the required dimensions for the gusset plates. This involves analyzing the loads and forces acting on the plate and determining the plate thickness, width, and length necessary to withstand these forces.
6. Sketch the design of the gusset plate using computer-aided design (CAD) software or traditional hand-drawing techniques. Ensure that the design includes all the necessary details, such as bolt holes, weld details, and any additional reinforcements if required.
7. Perform structural analysis using finite element analysis (FEA) software or other appropriate methods to validate the design. This step helps to determine whether the proposed gusset plate design can withstand the anticipated loads and forces.
8. Prepare detailed documentation of the gusset plate design process, including calculations, drawings, and analysis reports. This documentation serves as a reference for future reference and can be used for review and approval by relevant stakeholders.
9. Review the design with a qualified structural engineer or other relevant professionals to ensure its accuracy and compliance with industry standards.

Who needs gusset plates design process:

1. Structural engineers and architects require the gusset plate design process to ensure the structural integrity and safety of the overall project. They use it to calculate the necessary dimensions and select appropriate materials for the gusset plates.
2. Fabricators and manufacturers need the gusset plate design process to accurately produce the required gusset plates. They rely on the design documentation to create the plates to the specified dimensions and build them using the appropriate materials.
3. Construction contractors and builders rely on the gusset plate design process to properly install and attach the gusset plates to the structural components. They utilize the design information to ensure correct placement, alignment, and attachment methods of the gusset plates.
4. Building inspectors and regulatory authorities may refer to the gusset plate design process to verify compliance with building codes and standards. They need it to assess the safety and structural integrity of the gusset plates and the overall structure.

In conclusion, the gusset plate design process is essential for various professionals involved in the construction industry, including structural engineers, architects, fabricators, manufacturers, construction contractors, builders, and building inspectors. It ensures the proper design, fabrication, installation, and compliance of gusset plates, leading to safe and structurally sound structures.
