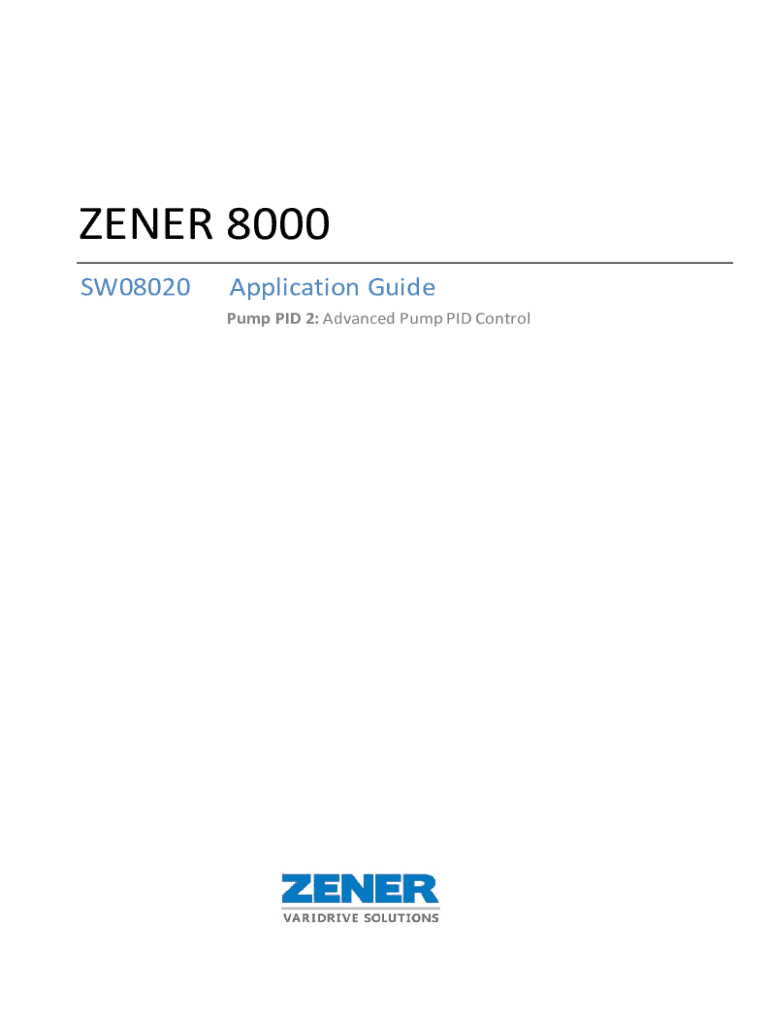

ZENER 8000 SW08020Application Guide Pump PID 2: Advanced Pump PID ControlApplication SW08020: Pump PID 2 [Advanced Pump PID Control]Important Warnings: ALL PROTECTION PROVIDED BY THE ZENER 8000 IS

How to fill out pid tuning guide

How to fill out pid tuning guide

1. Start by understanding the concept of PID (Proportional, Integral, Derivative) control.
2. Gather all the necessary documentation and information about the system or process you want to tune.
3. Identify the desired response of the system, such as achieving a certain setpoint or maintaining stability.
4. Begin by setting all the PID controller parameters to zero (or some initial values).
5. Increase the proportional gain (P) until the system starts to oscillate around the setpoint.
6. Once the system is oscillating, adjust the integral gain (I) to eliminate the offset or steady-state error.
7. Now, adjust the derivative gain (D) to increase system stability, reduce overshooting, or improve response time.
8. Repeat steps 5 to 7 multiple times, gradually fine-tuning the gains to achieve the desired system response.
9. Test and validate the tuned PID controller by evaluating its performance and making further adjustments if necessary.
10. Document the final PID tuning values for future reference and monitoring.
