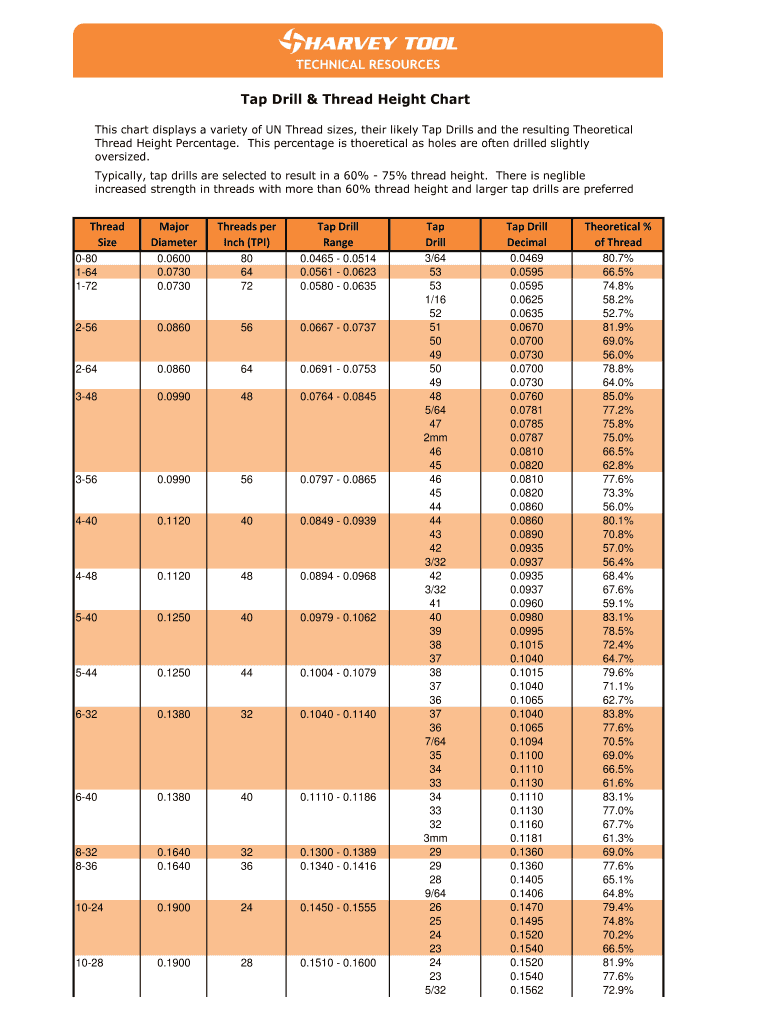

Tap Drill & Thread Height Chart This chart displays a variety of UN Thread sizes, their likely Tap Drills and the resulting Theoretical Thread Height Percentage. This percentage is theoretical as

How to fill out tap drill amp thread

How to Fill Out Tap Drill & Thread:

1. Start by determining the appropriate tap drill size for the specific thread size that you want to create. You can refer to a tap drill chart or use online resources to find the correct size.
2. Once you have the tap drill size, use a suitable drill bit to create a hole in the material you are working with. Make sure to align the drill bit properly and apply even pressure while drilling.
3. After drilling the hole, clean it up by removing any burrs or debris. You can use a deburring tool or a chamfering tool to smooth out the edges of the hole.
4. Now, it's time to tap the hole. Select the appropriate tap for the thread size you are working with. Secure the tap in a tap wrench or a tap handle.
5. Carefully position the tap at the starting point of the hole and begin turning it clockwise. Apply consistent downward pressure while rotating the tap. Make sure to go slow and back off periodically to clear any chips.
6. Continue tapping until you reach the desired depth. You can use a depth gauge or a tap depth chart to ensure accurate tapping.
7. Once tapping is complete, remove the tap from the hole by turning it counterclockwise. Clean up any leftover debris and inspect the threads for any imperfections.
8. Finally, insert the corresponding thread into the tapped hole to ensure a proper fit. It's important to note that thread engagement may vary depending on the specific application and material being used.
